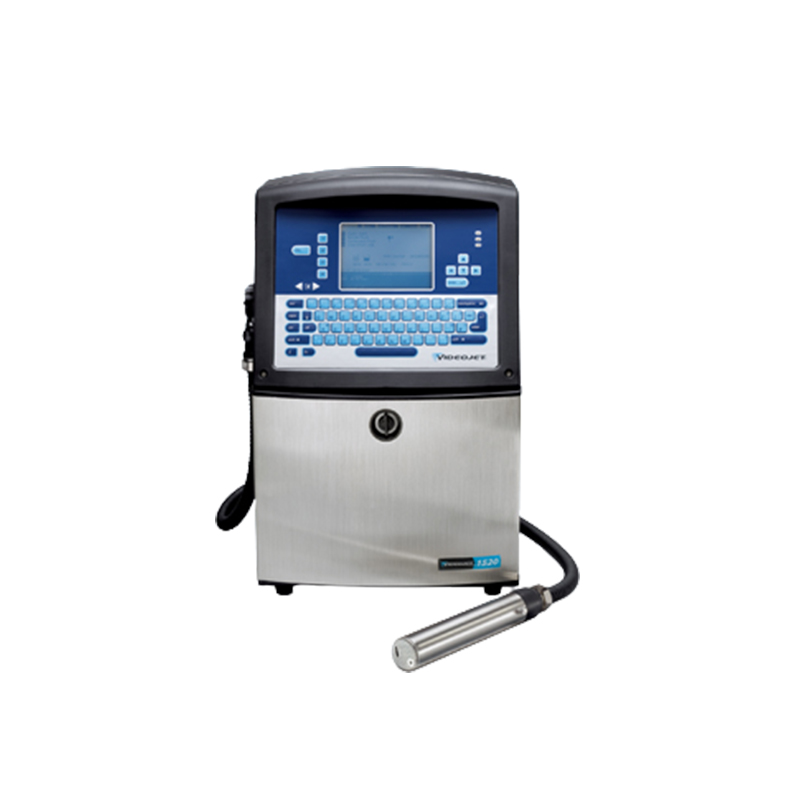

second hand Videojet printer 1520 model with normal working

Product Details:

Advanced capabilities

  • Up to 5 lines of code with speeds up to 914 ft./min.

(278.6 m/min.)

  • Wide range of bar codes (including 2D DataMatrix)
  • Advanced Clean Flow

TM

printhead design maximizes

uptime

Low running costs

  • The longest run time between maintenance – 12,000

hour core life

  • Make-Up consumption as low as 2.4 ml/hour
  • Smart Cartridge

TM

the fluid delivery system reduces

Line Speed Capability

Can print 1 to 5 lines of print at speeds of up to 914 ft./min.

(278.6 m/min.) (10 characters per inch, single line of print)

Font Matrix Configuration

Single-line: 5×5, 5×7, 7×9, 8×12, 11×16, 17×24, 34×34

Twin-line: 5×5, 5×7, 7×9, 8×12, 11×16

Tri-line: 5×5, 5×7, 7×9

Quad-line: 5×5, 5×7

Five-line: 5×5

Linear Bar Codes

UPC A&E; EAN 8 & 13; Code 128 A, B & C;

UCC/EAN 128; Code 39; Code 93; Interleaved 2 of 5

DataMatrix Codes

10×10, 12×12, 14×14, 16×16, 18×18, 20×20, 24×24, 34×34

Nominal Character Height

Selectable from 0.079” (2 mm) to 0.40” (10 mm), depending on font

Throw Distance

Optimal: 0.472” (12 mm)

Range: 0.197” (5 mm) to 0.591” (15 mm)

Keyboard

Membrane style with tactile feedback, including 72 numeric, alphabetic,

and special function keys. PC-style layout to approximate international

PC convention.

Display

320×240 Bright blue backlit 5.7” LCD display.

WYSIWYG onscreen message editing

Custom Logo/Graphics

Can be created by an individual user on a printer or PC with optional Videojet

Logo Creator software

Character Sets

Chinese, Russian/Bulgarian, Turkish/Scandinavian, Greek, Arabic,

Japanese/Kanji, Hebrew, Korean, East European, and European/American

Languages and Interface Options

English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French,

German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean,

Norwegian, Polish, Portuguese, Russian, Simple Chinese, Spanish,

Swedish, Thai, Traditional Chinese, Turkish and Vietnamese

Data Interface

RS232, RS485 and Ethernet (standard)

Clarisoft/Clarinet

®

via RS232 and ethernet

Message management via USB

Message Storage

100 complex messages

Environmental Protection

IP55 (IP65 option, no plant air required); stainless steel cabinet

Printhead

Heated printhead

Positive air (standard)

Diameter: 1.63” (41.3 mm)

Length: 10.62” (269.8 mm)

Printhead Umbilical

Ultra flexible

Length: 9.84’ (3 m) optional 19.69’ (6 m)

Diameter: 0.91” (23 mm)

Bend radius: 3.00” (76.2 mm)

Make-Up Fluid Consumption

As low as 2.4 ml per hour

Fluids Containers

Ink Smart Cartridge

0.793 qt. (750 ml)

Make-up Smart Cartridge 0.793 qt. (750 ml)

Temperature/Humidity Range

32°F to 122°F (0°C to 50°C)

0% to 90% RH non-condensing

With selected inks; actual installation may require additional hardware

based on production environment conditions

Electrical Requirements

Nominal supply power 100-120 / 200-240 VAC at 50/60 Hz., 120 W

Approximate Weight

Unpacked and dry: 46.2 lbs. (21 kg)
