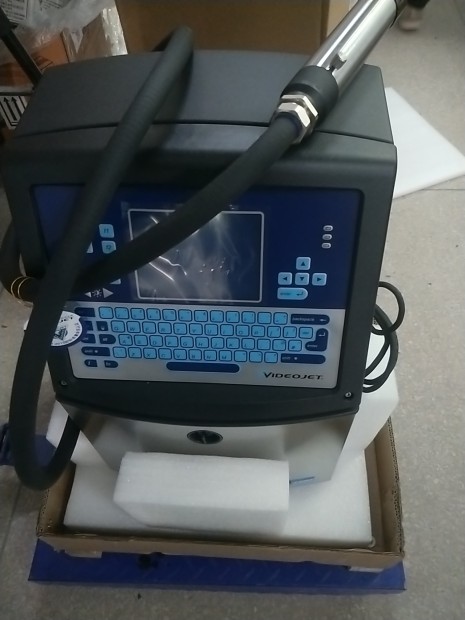

second hand Videojet printer 1220 model with normal working

Product Details:

Advanced capabilities

  • Up to 3 lines of code with speeds up to 533 ft./min.

(162 m/min.)

  • Standard USB with logo and memory back up

Low running costs

  • Longest run time between maintenance – 9,000

hour* core life

  • Smart Cartridge

TM

fluid delivery system reduces

waste

Superior environmental protection

  • IP55 washdown protection standard
  • Line Speed CapabilityCan print 1 to 3 lines of print at speeds of up to 533 fpm

    (162.5 mpm) (10 characters per inch, single line of print)

    Font Matrix Configuration

    Single-line: 5×5, 5×7, 7×9, 11×16, 17×24

    Twin-line: 5×5, 5×7, 7×9

    Tri-line: 5×5, 5×7

    Linear Bar Codes

    UPC A&E; EAN 8 & 13; Code 128 A, B & C;

    UCC/EAN 128; Code 39; Code 93; Interleaved 2 of 5

    DataMatrix Codes

    10×10, 12×12, 14×14, 16×16, 18×18, 20×20

    Nominal Character Height

    Selectable from 0.079” (2 mm) to 0.279” (8.5 mm), depending on font

    Throw Distance

    Optimal: 0.472” (12 mm)

    Range: 0.197” (5 mm) to 0.591” (15 mm)

    Keyboard

    Membrane style with tactile feedback, including 72 numeric, alphabetic,

    and special function keys. PC-style layout to approximate international

    PC convention.

    Display

    320×240 Bright blue backlit 5.7” LCD display.

    WYSIWYG onscreen message editing

    Custom Logo/Graphics

    Can be created by individual user on printer or PC with optional Videojet

    Logo Creator software

    Character Sets

    American, Arabic, Bulgarian, Chinese, East European, European, Greek,

    Hebrew, Hungarian, Italian, Japanese, Japanese/Kanji, Japanese/

    Katakana, Korean, Russian, Simplified Chinese, Scandinavian, Thai,

    Traditional Chinese, Turkish, Vietnamese

    Languages and Interface Options

    English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French,

    German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean,

    Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Spanish,

    Swedish, Thai, Traditional Chinese, Turkish and Vietnamese

    Message Storage

    100 complex messages. Unlimited storage using USB.

    Standard USB with logo and memory backup features

    Environmental Protection

    IP55; stainless steel cabinet

    Printhead

    Heated printhead

    Diameter: 1.6” (41.3 mm)

    Length: 9.5” (241.0 mm)

    Printhead Umbilical

    Ultra flexible

    Length: 6.56’ (2 m)

    Diameter: 0.91” (23 mm)

    Bend radius: 4.0” (101.6 mm)

    Fluids Containers

    Ink Smart Cartridge

    0.793 qt. (750 ml)

    Make-Up Smart Cartridge 0.793 qt. (750 ml)

    Temperature/Humidity Range

    32°F to 122°F (0°C to 50°C)

    0% to 90% RH non-condensing

    With selected inks; actual installation may require additional hardware

    based on production environment conditions

    Electrical Requirements

    Nominal supply power 100-120 / 200-240 VAC at 50/60 Hz., 120 W

    Approximate Weight

    Unpacked and dry: 39.68 lbs. (18 kg)

    Options

    Positive air pump

    Dry air kit for high humidity (requires plant air)

    Product detect, relay, RS 485 expansion board

    RS232, encoder, beacon expansion board

    9.8-foot (3 m) umbilical

    60 or 70 micron nozzle

    Food grade version

    90 degree printhead

    Wide range of accessories
